Included equipment
- Monitor with mount plate (pre-attached)

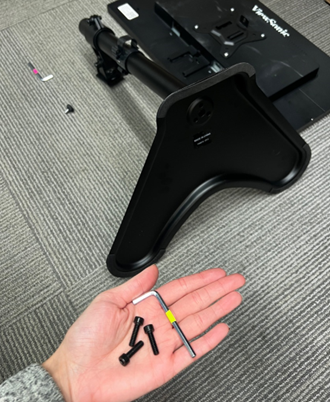

- Small Allen wrench (Yellow) & Large Allen wrench (Pink)
- Three black screws & one part silver hand twist screw
- Monitor stand
- Monitor stand base (Note: The base is properly oriented in above image)
Basic Setup Instructions
- Align the monitor stand (4) with the monitor base (5).
- Make sure the monitor base is facing correctly before connecting.
- Make sure the monitor base is facing correctly before connecting.
- Use the Small/yellow Allen wrench and the three black screws to attach the base to the stand.
- Make sure these are screwed in tight!
- Make sure these are screwed in tight!
- Once attached, sit the stand upright.
- Pick up the monitor and slide the existing plate onto the monitor stand.
- Use the black and silver hand screw to secure the monitor to the mount.
You’re finished with basic setup!
If you would like to adjust the height and tilt of your monitor, follow the instructions below.
- Use the large Pink Allen wrench for these adjustments.
CAUTION: Loosening this screw will cause the monitor to tilt completely downward due to its own weight. Assistance is recommended for this adjustment.
- Use the screw near the front of the stand to adjust the tilt/angle of the monitor.
- Support the monitor weight when loosening this screw.
- Hold the monitor at the desired tilt angle and retighten screw.

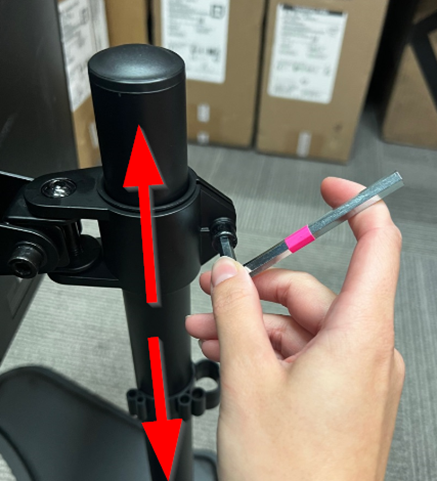

CAUTION: Loosening this screw will cause the monitor and bracket to slide down the mount pole. Assistance is recommended for this adjustment.
- Use the screw at the back of the mount to adjust the height of the monitor.
- Support the monitor weight when loosening this screw.
- Hold the monitor at the desired height and retighten the screw.
