XVCapture: MouthWatch

New Mouth Watch IntraOral camera is plug in play, but does require additional setup for first time use.

First time use setup can be done by the office.

1. Open XVCapture from the desktop or from a patient's chart in denticon
2. Select Direct Video extension
3. Select a series
4. Click on start progression

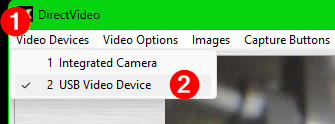

5. Click on Video Devices and select "USB Video Device"

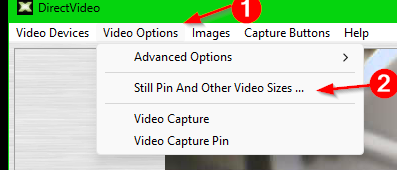

6. Click on Video Options and select "Still Pin And Other Video size

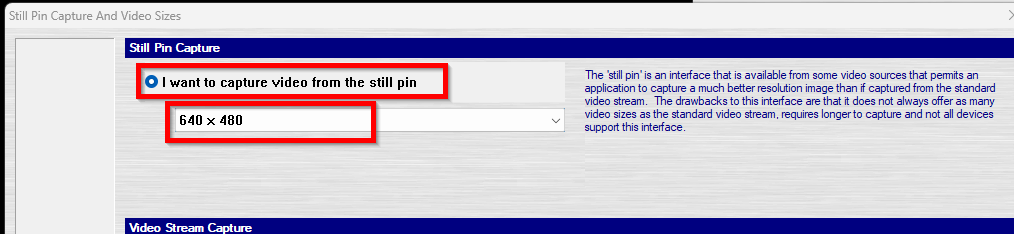

7. Click on "I want to capture video from the still pin'
   1. Change resolution size to 640x480

8. Close the "Still pin And Other Video Size" window
9. You should now be able to capture an image using the mouthwatch capture button.
